THE HEART OF YOUR SYSTEM

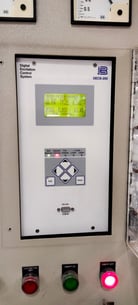

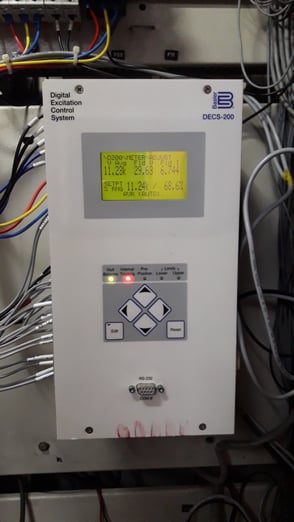

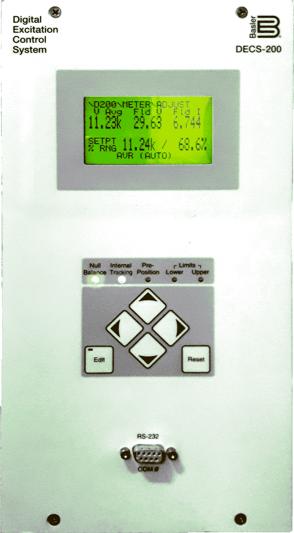

The DECS-200 is an excitation control system used to control the output voltage, vars or power factor of a synchronous generator by varying or controlling the amount of DC excitation applied to the generator’s exciter field. Suitable for virtually any size machine, the microprocessor-based DECS-200 is a total excitation control system in one enclosure. It contains all the functionality necessary to control, limit, and protect a generator from operating outside of the machine’s capability.

DECS 200

• Microprocessor-based design

• Up to 125Vdc output at 15Adc

• 20 standard stability selections

• PID Calculator

• Paralleling compensation

• Soft start build-up

• Auto-tracking between operating modes

• Minimum Excitation Limiter

• Stator Current Limiter

• Oscillography

• Exciter Diode Monitoring (EDM)

• Eight generator protection features

• Front panel backlit LCD display

• Side panel mounted RS-485 comm. port

• True RMS sensing, single or three phase

• 0.25% Voltage Regulation Accuracy

• User customizable stability selection

• U/F compensation or V/Hz Ratio Limiter

• FCR Mode (Manual Mode)

• Auto-tracking between 2 DECS-200 units

• On and off-line Maximum Excitation Limiters

• VAR and PF (Power Factor) Controllers

• Sequence of Events Recording

• Sequence of Events Recording

• Voltage Matching

• Programmable output contacts

• Front panel mounted RS-232 comm. port

• Modbus protocol for RS-485 up to 1.2km

• Setup from front panel HMI or by PC with free BESTCOMSTM user-friendly setting software.

• Meets C37.90.1-1989 for Surge Withstand and Fast Transient

• UL recognized, CSA certified, CE compliant, DNV certified, GOST-R certified, Byelorussian certified

• Two separate analog inputs for remote set point control

• Designed for applications ranging from 0 to 15 Amps
